Mobile Ramp best
1.Foldable and convenient, saving space for storage and transportation.
2. Strong load-bearing capacity, suitable for various forklift operations.
3.Anti-slip and wear-resistant, ensuring safe operation. No power required, manual operation is more efficient.
4.Wide adaptability, compatible with multiple cargo box models
Product Introduction

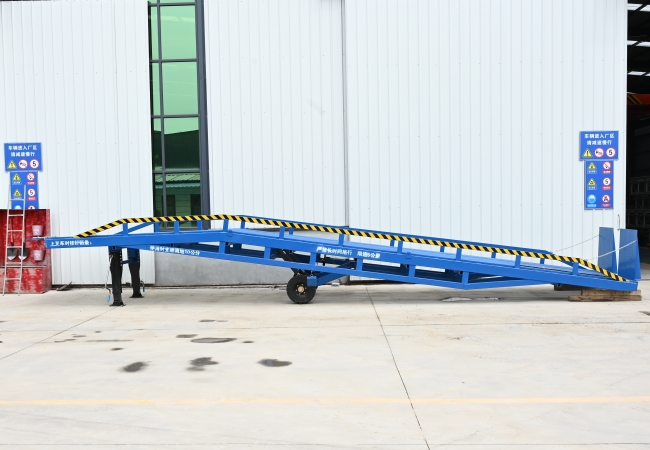

This three-fold Forklift Loading Ramp is an efficient auxiliary device specially developed for international logistics loading and unloading scenarios. It can perfectly connect the height difference between forklifts, trucks and containers, solving the problem of goods loading and unloading in scenarios without fixed loading platforms. Compared with the traditional Container loading ramp, its unique three-fold design significantly enhances portability and space utilization, while also taking into account stability and durability. It is suitable for forklift operations of various tonnages and is widely used in various scenarios such as warehousing, ports, and logistics parks. It is a core equipment for improving loading and unloading efficiency and reducing labor costs. When used in conjunction with container Dock Leveler, the overall loading and unloading process can be further optimized to meet the requirements of efficient operation in different scenarios

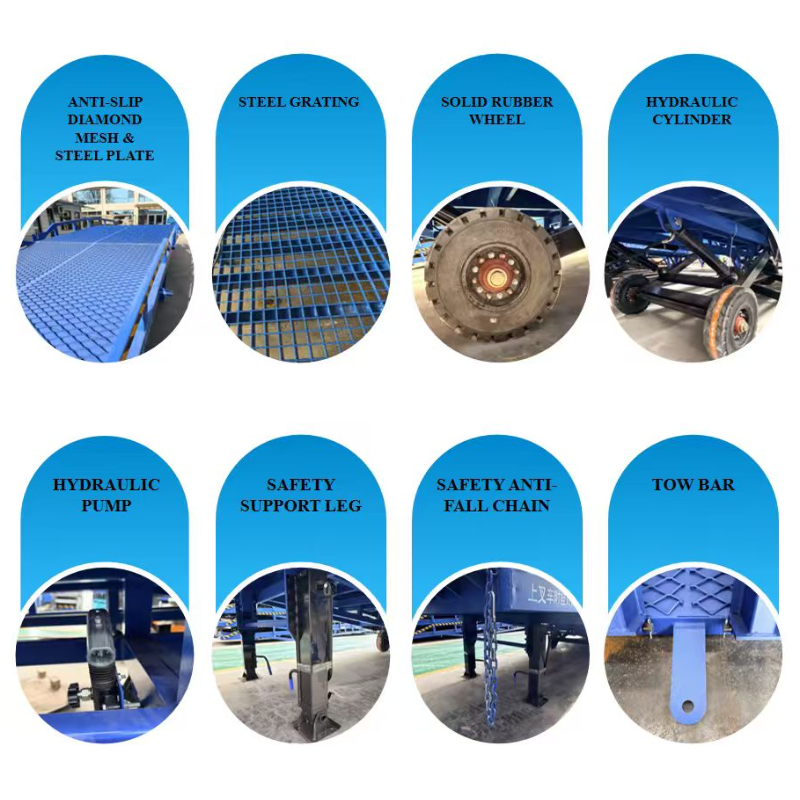

The main body is made of high-strength steel and has undergone strict anti-pressure and anti-wear treatments to ensure no deformation during long-term heavy-load operations, extend the service life of the equipment, and meet the loading and unloading requirements of heavy-duty forklifts. It adopts a three-fold structure design. After folding, it is compact in size and can be easily moved and stored without occupying too much storage space. It is convenient for cross-site movement operations and enhances the versatility of the equipment. The countertop is made of anti-slip patterned steel plate and is equipped with anti-skid guardrails to effectively prevent forklifts from slipping and overturning during operation. It is also provided with anti-collision blocks to protect the equipment and vehicles from damage, ensuring comprehensive operation safety. It does not require an external power supply. It adopts a manual hydraulic adjustment method. A single person can complete the height adjustment and folding operation. The operation is convenient, significantly reducing human input and improving the efficiency of loading and unloading operations
Product Parameters
External dimensions | Expansion dimensions: 11550mm (length) x 2200mm (width) x 1500mm (height) Folding up dimensions: 6000mm (length) x 2180mm (width) x 2200mm (height) |
Platform size | Slope length (mm): 7200 ,Tail board (mm): 86mm, Front tongue plate(mm): 400mm, Equipment interior width: 2100mm, covered with 4mm steel plate and 6mm steel plate mesh |
Rated load capacity | 10000KG |
Equipped with power | Manual hydraulic pump, 2 hand cranked legs |
Adjustment range | 1100-1800mm (equipment adjustment range) |
Guardrail height | 300mm (40 x 80 x 3mm rectangular tube) |
Main structure | 160 x 80 x 4 rectangular tube 120 x 60 x 4 rectangular tube 5 main beams (with a spacing of about 40cm between the cross braces) |
Secondary beam structure | 100 x 50 x 4mm rectangular tube |
Hydraulic cylinder | Φ 80 x Φ 45 (2 pieces) |
Hydraulic tubing | 32Mpa high-pressure oil pipe |
Mobile rubber wheels | 600-9 solid tire |
Bridge and Container | The bridge body is welded with hooks and fixed with steel chains |
Paint surface | Blue (Qilu Acrylic Resin Paint) |
Product Classification
Portable folding design: The three-fold structure is scientifically reasonable. After folding, the size is compact and the weight is moderate. It can be easily transported by Forklift or manually. It is suitable for mobile Loading and unloading scenarios and solves the pain point of inconvenient transportation of traditional ramps. It is the preferred choice for mobile forklift loading ramps. • Super strong load-bearing performance: The core load-bearing components are welded with thickened steel sections, with a load-bearing range covering 6 to 12 tons. It can be adapted to various mainstream forklifts to meet the loading and unloading requirements of light and heavy goods, and its stability far exceeds that of ordinary Container loading ramps. • Comprehensive safety protection: Multiple protections such as anti-slip treatment on the platform surface, side guardrails, anti-collision blocks, and anti-rolling devices are provided. Meanwhile, the hydraulic system adopts imported sealing parts to prevent leakage, ensuring the safety of personnel, equipment, and goods during forklift operations, and meeting international safety standards. • Wide adaptability: The height can be flexibly adjusted to adapt to trucks and containers of different heights, compatible with multiple types of forklifts, and can be used in conjunction with container Dock Leveler to adapt to various scenarios such as warehousing, ports, and construction sites, with strong versatility.
Working Principle
1.Height adjustment principle: By applying pressure through a manual hydraulic pump, the hydraulic cylinder is driven to extend and contract, which in turn lifts and lowers the ramp platform, achieving precise height alignment with the truck compartment, container or loading platform. It can flexibly adapt to loading and unloading scenarios at different heights, with convenient operation and precise adjustment.
2. Folding storage principle: It adopts a hinge connection structure. After releasing the fixed lock, the ramp can be divided into three sections and folded in sequence. After folding, it is fixed with a safety lock to prevent accidental unfolding, which is convenient for storage and transportation, saving space while improving the convenience of movement.
3.Load-bearing support principle: The main body of the ramp adopts a "U" -shaped steel frame design, with anti-slip patterned steel plates laid on the platform surface. The force is evenly distributed, which can evenly distribute the weight of the forklift and goods throughout the ramp, ensuring that it does not bend or deform during heavy-load operations and guaranteeing stable operations.

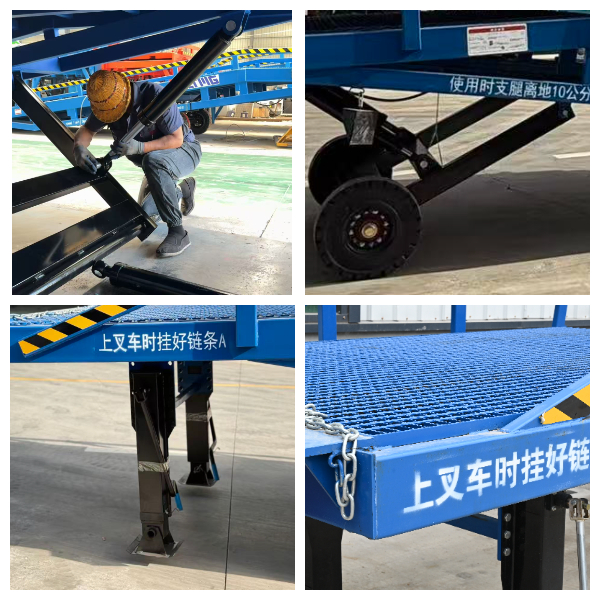

4.Safety fixation principle: The bottom of the ramp is equipped with anti-slip rubber pads, which can firmly adhere to the ground to prevent sliding during operation. It is also equipped with adjustable cable chains, which can fix the ramp to the truck and container, avoiding displacement during loading and unloading. It complements the fixing principle of the container Dock Leveler and enhances the overall operation safety.
5.Power transmission principle: No external power supply is required. By manually pressing the hydraulic pump, mechanical energy is converted into hydraulic energy to drive the hydraulic system to operate, achieving the lifting and lowering of the work surface. The operation is simple and does not require professional skills. All operations can be completed by a single person, lowering the threshold for work
Product Application

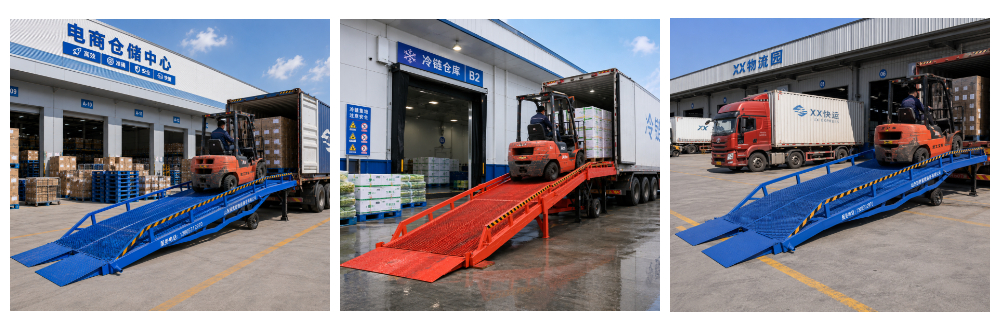

1.Container loading and unloading scenarios: In ports, docks and other places, it is used to connect forklifts with containers, solve the problem of height difference between containers and the ground, replace traditional container loading ramps, achieve rapid loading and unloading of goods, improve port operation efficiency, and be compatible with various container specifications.
2.Warehousing and logistics scenarios: In warehouses and logistics parks without fixed Loading platforms, it is used in combination with Forklift Loading Ramp to enable forklifts to quickly enter and exit the truck compartments, complete the receipt, dispatch and turnover of goods, and can collaborate with container Dock Leveler to optimize the loading and unloading process and reduce labor costs.
3. Construction site scene: On construction sites, it is used for forklifts to load and unload building materials, mechanical equipment, etc. It is suitable for the complex ground environment of the construction site. It can be folded conveniently and moved flexibly without fixed installation, meeting the temporary loading and unloading needs of the construction site and enhancing the safety of operations.
4.Freight transfer station scenario: In road and railway freight transfer stations, it is used for the transfer of goods between different transport vehicles, compatible with various vehicle types, and can quickly adjust the height to achieve efficient forklift operation, solving the pain point of no fixed loading and unloading equipment in transfer stations. 5.Emergency Loading and unloading scenarios: In emergency scenarios such as temporary material allocation and disaster rescue, the three-fold Forklift Loading Ramp can be quickly deployed without complex installation, enabling rapid loading and unloading of goods, saving time for emergency work, and adapting to various temporary operation environments
Company Strengths

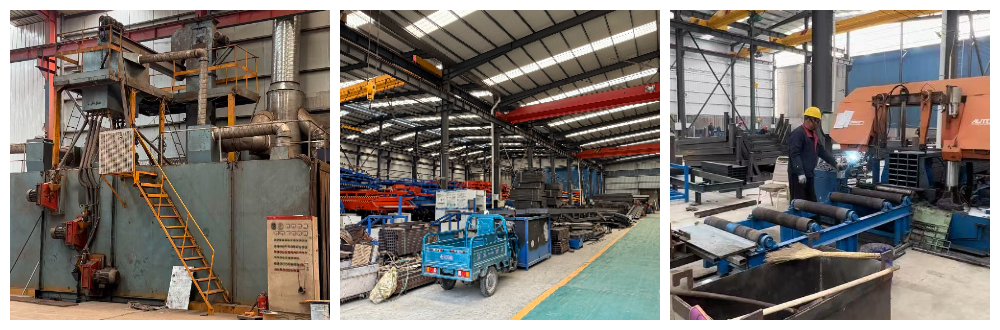

Strong R&D capabilities With a professional R&D team, we focus on the R&D of logistics Loading and unloading equipment such as Forklift Loading Ramp, container Dock Leveler, and Container loading ramp. We can provide customized solutions according to customer needs and keep up with the international industry technology trends. • Strict quality control: From raw material procurement to finished product delivery, a full-process quality inspection system is established. High-strength steel and imported core components are used to ensure that every three-fold loading and unloading ramp meets international quality standards, with a low failure rate and a long service life | Sufficient production capacity: Equipped with a modern production base, advanced production equipment and production lines, it has the capacity for large-scale standardized production. It can quickly respond to bulk orders from international B2B buyers, ensure delivery cycles, and meet customers' bulk purchasing needs. • Improve after-sales support: Provide global after-sales technical support, equipment installation guidance and maintenance services, establish a professional after-sales team, respond promptly, solve various problems encountered by customers during use, enhance the purchasing experience of customers, and accumulate a large number of high-quality international customers. • Complete international certifications: The products have passed international authoritative certifications such as CE and ISO, meeting the safety standards of international logistics loading and unloading equipment. They can be directly exported to many countries and regions around the world, adapting to the industry norms of different countries and lowering the import threshold for customers. |
FAQ
1.Question: What is the maximum load capacity of this three-fold Forklift Loading Ramp? Is it compatible with heavy-duty forklifts?
Answer: The load-bearing range of this product is 6-12 tons. Different load-bearing specifications can be customized according to customer requirements. It is fully compatible with the operation of all kinds of heavy-duty forklifts. The load-bearing performance has been strictly tested to ensure the safety and stability of heavy-load operations. Compared with the loading ramp of ordinary containers, its load-bearing performance is superior.
2.Question: What is the volume of the product after folding? Is it convenient for sea or land transportation?

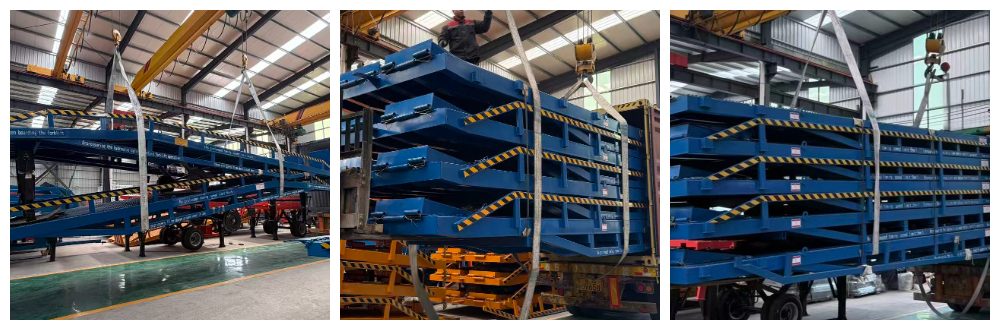

Answer: After folding, it has a compact volume. The specific size can be customized according to the model. It can be stacked and stored after folding, occupying less space. It is convenient for various transportation methods such as sea and land transportation, significantly reducing international transportation costs and solving the problem of inconvenient transportation on traditional loading and unloading ramps.
3.Question: Does the product require professional installation and commissioning? Is daily maintenance difficult?
Answer: No professional installation or debugging is required. One person can complete the operations of unfolding, fixing and height adjustment. The operation is simple and easy to understand. Daily maintenance only requires regular checks of the hydraulic system, locks and anti-slip pads. The maintenance cost is low and does not require complex professional skills, which can reduce the operating costs of customers. •
4.Q: How is this product used in conjunction with container Dock Leveler? Is it compatible with loading and unloading equipment of other brands?
Answer: The three-fold Forklift Loading Ramp can be used in conjunction with the container Dock Leveler to achieve seamless connection between fixed loading platforms and mobile loading and unloading, and improve the overall loading and unloading efficiency. The product design complies with international common standards and is compatible with most brands of forklifts and loading and unloading auxiliary equipment on the market. It has strong versatility and is well-suited to the existing operation systems of customers.
5.Question: What is the maximum load capacity of this three-fold Forklift Loading Ramp? Is it compatible with heavy-duty forklifts?
Answer: The load-bearing range of this product is 6-12 tons. Different load-bearing specifications can be customized according to customer requirements. It is fully compatible with the operation of all kinds of heavy-duty forklifts. The load-bearing performance has been strictly tested to ensure the safety and stability of heavy-load operations. Compared with the loading ramp of ordinary containers, its load-bearing performance is superior
