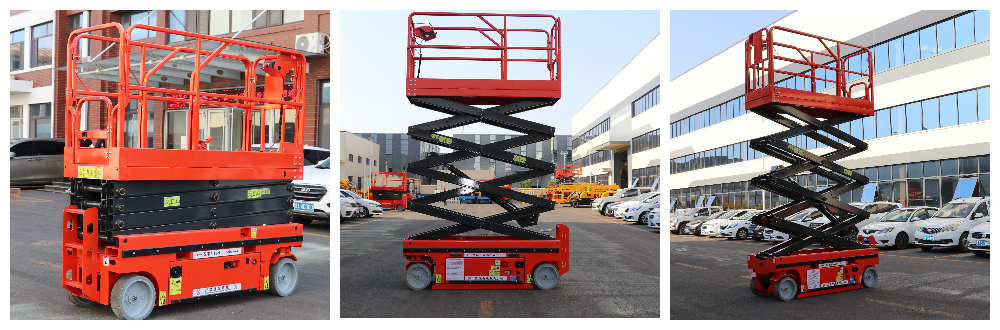

Aerial Platforms
1.Full safety protection with multi anti-overload systems
2.Compact body & flexible steering for narrow spaces
3.Low-noise electric drive, zero indoor pollution
4.High-strength steel frame, stable heavy load lifting
5.One-button simple operation, low maintenance cost
Product Introduction
Our aerial work platforms cover a full range of lifting equipment for indoor and outdoor high-altitude operations, with stable hydraulic power as the core driving system, widely used in factory maintenance, warehouse handling, construction decoration and other scenarios.
1.The classic hydraulic scissor lift adopts double scissor arm bearing structure, strong load capacity and stable lifting, suitable for large-area continuous overhead work;
2.Our hydraulic platform lift features an integrated hydraulic power unit, fast lifting response and smooth height adjustment, easy to match with assembly lines;
3.The standard scissor lift is compact in overall layout, flexible to turn in narrow aisles, and supports electric walking to save labor moving costs;
4.All hydraulic lifting series are equipped with overload protection and emergency lowering valves, effectively improving operation safety and reducing equipment failure risks.
Product Parameters

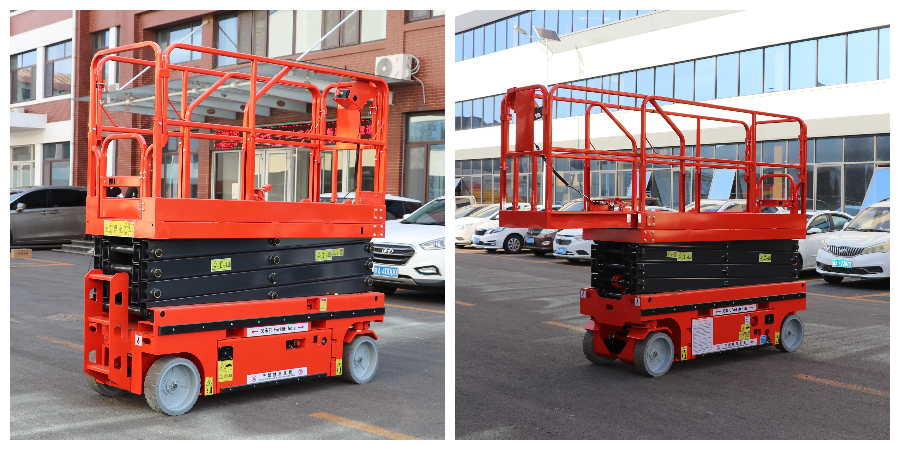

Product Name | Scissor Lift | Model No. | LSYZ-14M |
Max. Working Height | 16m | Max. Platform Height | 13.8m |
Overall length | 2855mm | Work platform size | 2635*1280mm |
Lifting motor/drive motor | 24v/4.5kw | Machine travel speed | 3.5km/h |
Total weight | 3400kg | Extension Length of Platform | 0.9m |
Total weight | 2600kg | Color | Customizable |
Max Climb Capability | 25% | tire | Φ381×127mm |
Place of Origin | Shandong, China | Certification | CE |
Height performance: Max working height reaches 16m, platform lifting height 13.8m, equipped with 0.9m extendable platform to expand operation area for multi-person work.
Power & mobility: 24V 4.5kW lifting and driving motor, traveling speed up to 3.5km/h, 25% maximum climbing capacity, suitable for flat and slight slope sites; tire size Φ381×127mm ensures stable driving.
Compact body: Overall length 2855mm, platform dimension 2635*1280mm, narrow-body design works well in warehouses, shopping malls and construction corridors.
Standard advantages: Total weight optional 2600kg/3400kg, support customized body color, passed CE certification, manufactured in Shandong China, meets international safety standards for indoor and outdoor aerial work.
Product Classification
1.This hydraulic scissor lift delivers stable lifting power as a core hydraulic platform lift. The LSYZ-14M scissor lift reaches a max working height of 16m with a 0.9m extendable platform, offering ample room for multi-person overhead tasks.
2.Equipped with a 24V 4.5kW integrated motor, the self-propelled scissor lift runs at 3.5km/h and supports 25% climbing capacity, with thickened solid tires ensuring smooth movement on flat and slightly sloped ground.
3.Compact overall length of 2855mm makes this hydraulic platform lift flexible for narrow aisles in warehouses and malls; two weight versions (2600kg/3400kg) are available to match different transportation and site demands.
4.Full CE certified hydraulic scissor lift with customizable body color, strict production standards from Shandong factory, complete safety protection systems to lower operation risks for long-term high-altitude work.
Working Principle

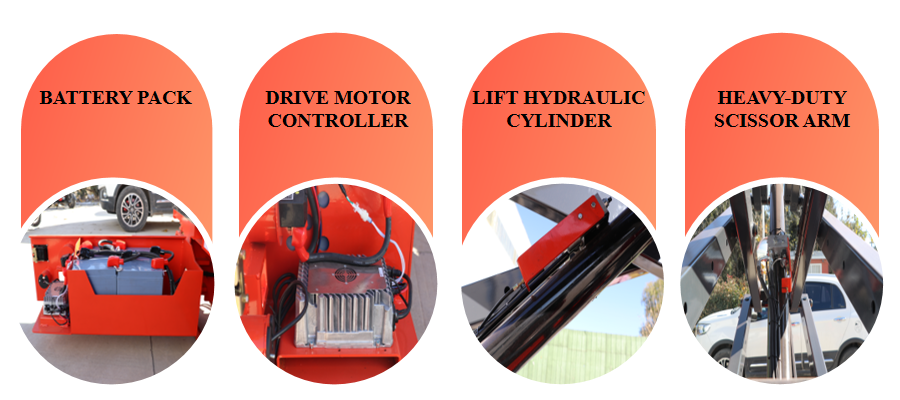

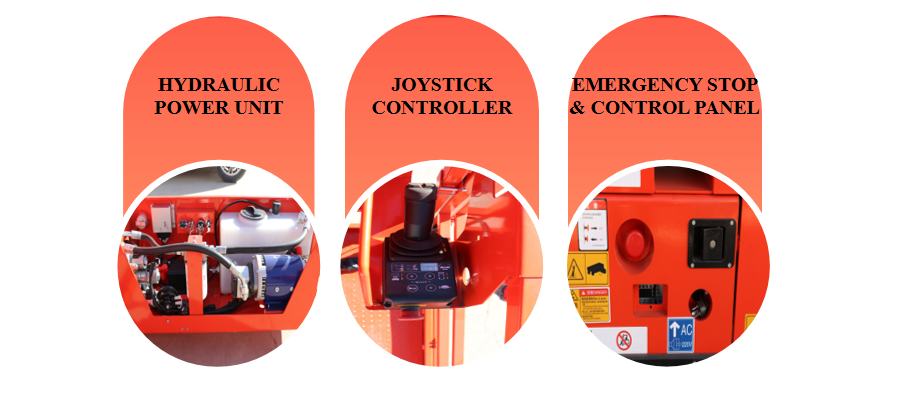

1.As a core hydraulic platform lift, the hydraulic scissor lift relies on hydraulic oil output from the 24V lifting motor-driven power unit to provide lifting thrust for the scissor arm groups of the scissor lift.
2.When lifting, the hydraulic cylinder pushes the cross scissor arms to expand outward, raising the work platform steadily; the built-in balance valve controls oil flow to avoid sudden jolts during height adjustment.
3.For traveling movement, the 4.5kW drive motor transmits power to the driving tires, enabling the scissor lift to move at 3.5km/h, and the climbing system adjusts torque to support a 25% gradient pass.
4.The extendable auxiliary platform of this hydraulic platform lift adopts mechanical slide rail structure, manually pulled out by operators to expand working space without extra hydraulic drive.
5.The whole hydraulic scissor lift equips pressure sensing overload protection; oil circuit will automatically lock and stop lifting once overloaded, matching CE safety standards to prevent tipping or platform failure

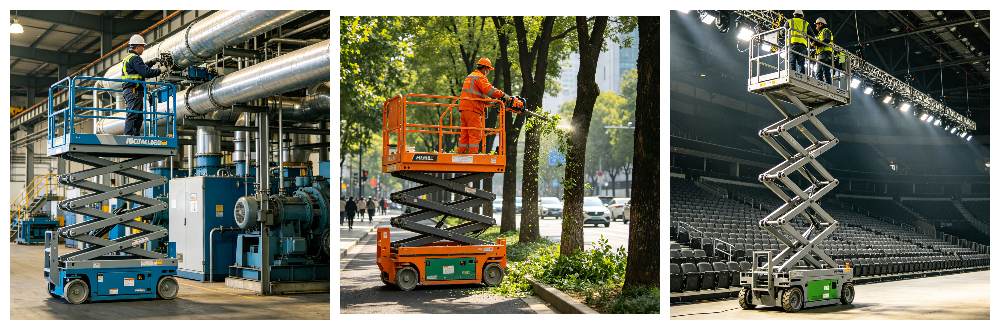

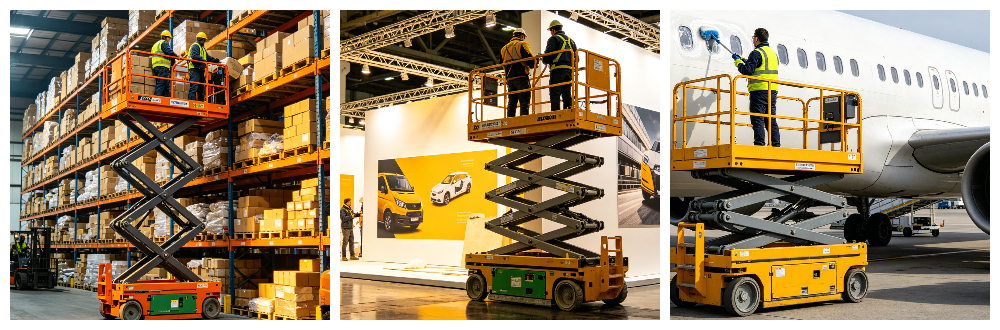

Product Application
1.Factory equipment maintenance: This hydraulic scissor lift, a standard hydraulic platform lift, is widely used for overhead pipeline inspection, lighting replacement and mechanical overhaul in large manufacturing workshops.
2.Warehouse & logistics operation: The compact self-propelled scissor lift easily moves inside narrow rack aisles for cargo stacking, label installation and high-level inventory checking.
3.Commercial mall decoration & cleaning: With smooth low-noise driving, the hydraulic platform lift suits ceiling renovation, advertising billboard installation and window glass cleaning in shopping centers and supermarkets.
4.Building construction & renovation: The LSYZ-14M hydraulic scissor lift with 16m working height serves wall painting, pipeline laying and electrical wiring on new buildings and renovation projects.
5.Public venue engineering: This scissor lift is adopted for stadium, station and exhibition hall work, including lamp maintenance, exhibition frame assembly and fire equipment inspection.
packaging and transportation
This hydraulic scissor lift (LSYZ-14M scissor lift, hydraulic platform lift) is fully wrapped with waterproof plastic film to prevent scratches and moisture corrosion during transit. Detachable guardrails and extendable platform help cut down overall dimensions for container loading. We secure the machine tightly with wooden blocks and steel ropes inside 20GP/40GP containers to avoid shifting and collision. All shipping documents including CE certificates and packing lists are delivered together for smooth customs clearance.
Company Strengths

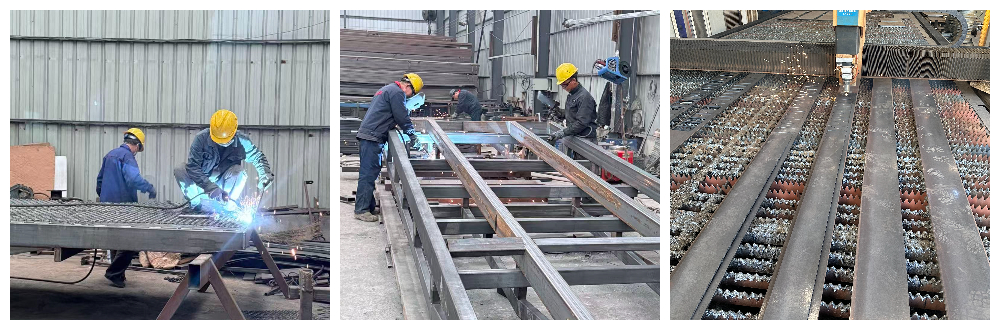

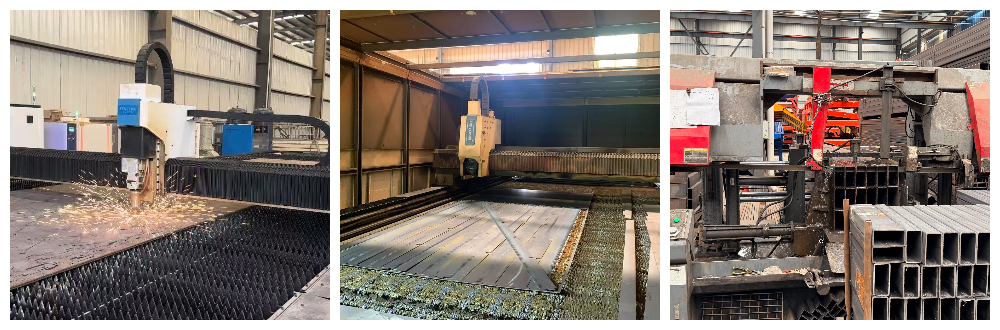

We are a professional aerial equipment manufacturer based in Shandong, China, the direct factory of scissor lift, hydraulic scissor lift and hydraulic platform lift series products. We own independent production workshops covering cutting, welding, hydraulic assembly and finished product testing, with full self-controlled production links from raw steel purchasing to finished machine delivery, eliminating intermediate dealers to offer competitive factory direct prices. Equipped with professional R&D team, we keep optimizing hydraulic lifting structure and safety systems, all machines pass strict load and stability test before shipment and get CE certification to meet global aerial work standards. We support customized color, weight and functional configuration for LSYZ-14M and other models, meanwhile provide complete packaging, container loading and one-stop export document service. With mature production capacity and stable supply chain, we deliver reliable hydraulic platform lift and hydraulic scissor lift to clients worldwide with guaranteed lead time and long-term after-sales technical support.
Customer Case
A large commercial property group purchased our LSYZ-14M hydraulic scissor lift hydraulic platform lift scissor lift for its multiple shopping mall daily maintenance projects.
Before cooperation, the client faced prominent troubles: traditional scaffolding took hours to assemble and disassemble, low working efficiency; ladders could not reach the 16m high ceiling, bringing huge safety risks for lamp replacement and billboard installation; narrow mall aisles left no room for bulky lifting equipment.
Our self-propelled scissor lift perfectly solved all pain points. Its compact body freely passes through narrow walkways, the 16m max working height meets all high-altitude renovation and cleaning needs, the extendable platform expands operating space for two workers at once, and self-driving design eliminates repeated disassembly work.
After one year of use, the customer’s high-altitude operation efficiency increased by over 60%, safety accidents were completely avoided, and they placed repeated bulk orders for new shopping center expansion projects.
FAQ
Q: What’s your minimum order quantity of scissor lift, hydraulic scissor lift and hydraulic platform lift?
A: MOQ is 1 unit, we support single machine retail order for trial cooperation.
Q: Can I mix different aerial platform models in one order?
A: Yes, you can mix LSYZ-14M and other models even if you only buy one set each.
Q: Is there extra cost if I only purchase 1 unit hydraulic scissor lift?
A: No hidden extra fees, we offer factory direct price for single unit as well.
