Split-Type Mobile Ramp

Product Presentation

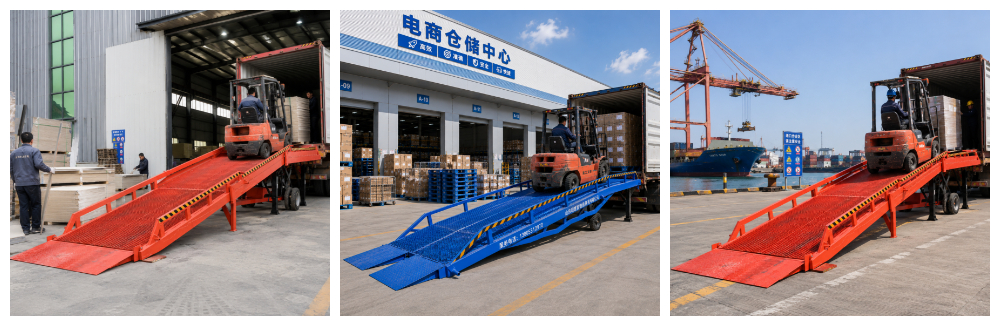

The two-fold mobile loading and unloading ramp is a popular mobile Loading and unloading equipment in foreign trade. It integrates the high-strength material of steel loading ramp and the passage standards of Forklift Loading Ramp. It is specially designed for container loading scenarios without fixed docks and temporary storage yards, replacing the traditional fixed loading bridge. Higher flexibility and wider application.

1.Optimized double-fold structure: The structure is simple and sturdy, taking into account both storage volume and overall strength, not prone to loosening, and has a longer service life.

2. Industrial steel material: Thickened steel is integrally welded and treated with anti-corrosion powder coating, suitable for outdoor exposure to intense sunlight, rain, and dust conditions.

3. Forklift-specific compatibility: Scientific slope design ensures smooth passage and is compatible with all types of electric and manual forklifts for loading, unloading and transfer.

4. Flexible mobile operation: Equipped with mobile rollers, it can quickly switch operation points to meet the temporary loading and unloading needs of multiple sites.

Product Parameter

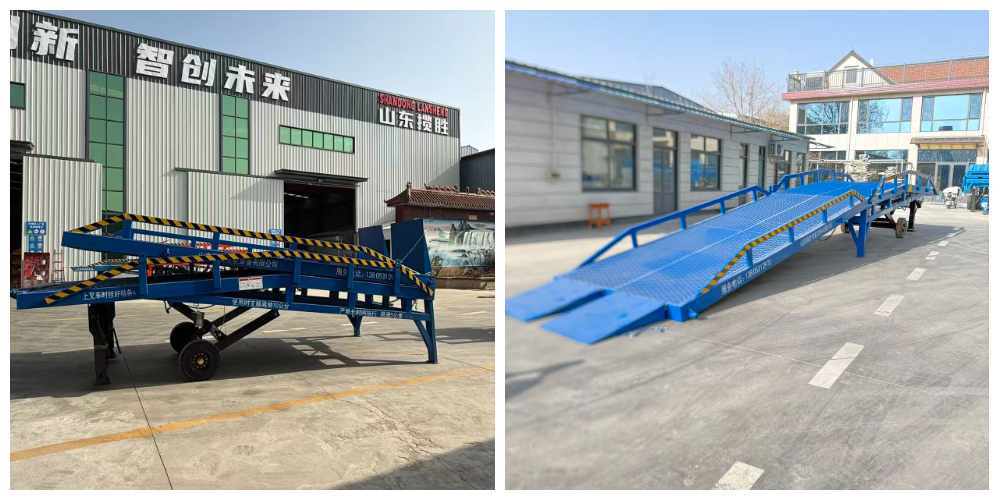

The DCQY-10 two-fold MOBILE YARD RAMPS is an integrated steel manual hydraulic mobile ramp with a rated load capacity of 10 tons. The unfolded external dimensions are 11400×2100×1500mm, and the folding dimensions are 6000×2180×2220mm. The lifting height range is 1100-1700mm. The standard blue color can be changed. It is produced in Shandong and has CE certification.

Product Feature

1.Strong load-bearing capacity and stable structure: The reinforced main beam is evenly stressed, and high-frequency forklifts do not deform or collapse when passing through, meeting the requirements for heavy-load industrial operations.

2.Compact folding and easy transportation: The two-fold storage volume is small, saving storage space. One person can complete the movement and storage.

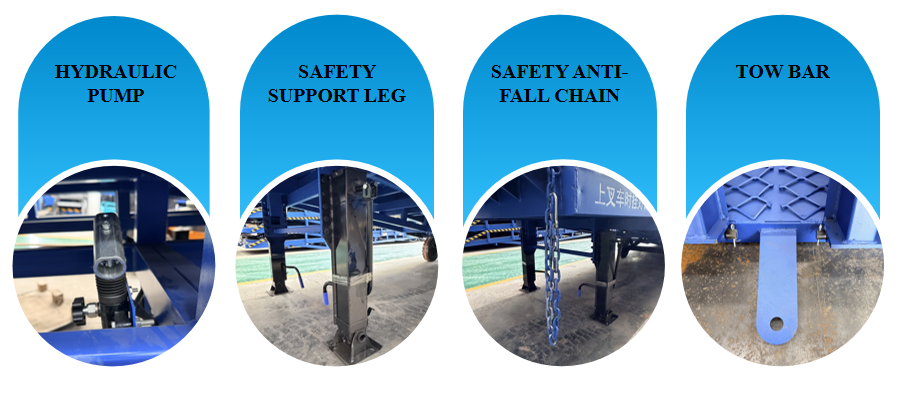

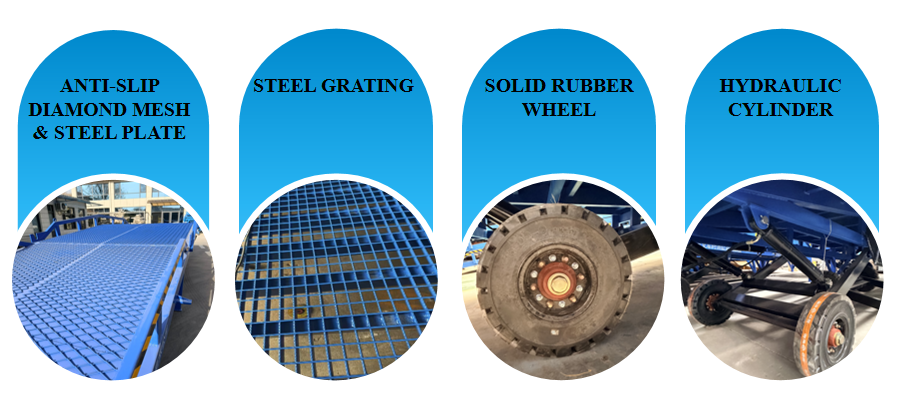

3. Anti-slip protection and operation safety: The anti-slip grating plate surface is wear-resistant and drains water. Combined with safety chains and side baffles, it effectively prevents slope displacement and forklift slippage.

4. Hydraulic fine-tuning, wide versatility: Manual hydraulic precise height adjustment, quick connection with containers and trucks, suitable for various container loading scenarios.

5. Maintenance-free and cost-effective: Anti-corrosion and weather-resistant technology, no vulnerable parts, simple daily maintenance, significantly reducing usage costs.

Working Principle

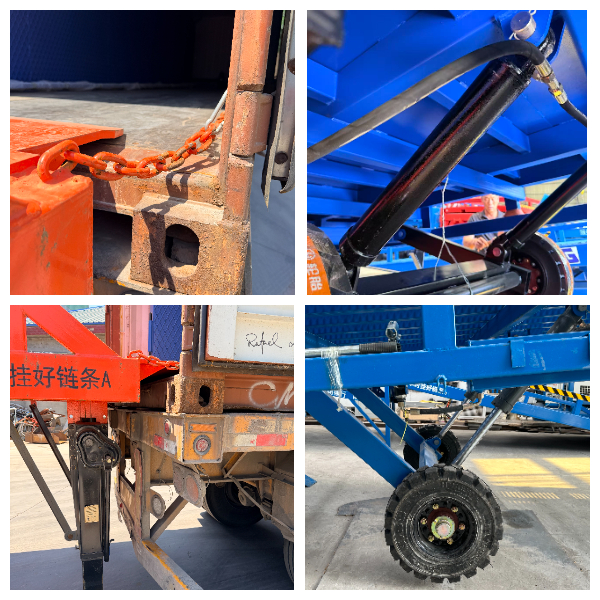

1.Positioning and fixation: Move the mobile yard ramp to the operation area for deployment and lock it with a safety chain to prevent operation slippage.

2. Height calibration: The hydraulic system fine-tunes the ramp height to precisely align with containers and truck compartments, eliminating passage drops.

3. Balanced load-bearing: The steel main beam evenly distributes the pressure of the forklift and the goods, ensuring the stability of the structure during heavy-load operations.

4.Efficient loading and unloading: Relying on a smooth slope to complete the entry and exit of goods, it efficiently realizes container loading and can be quickly folded and stored after completion.

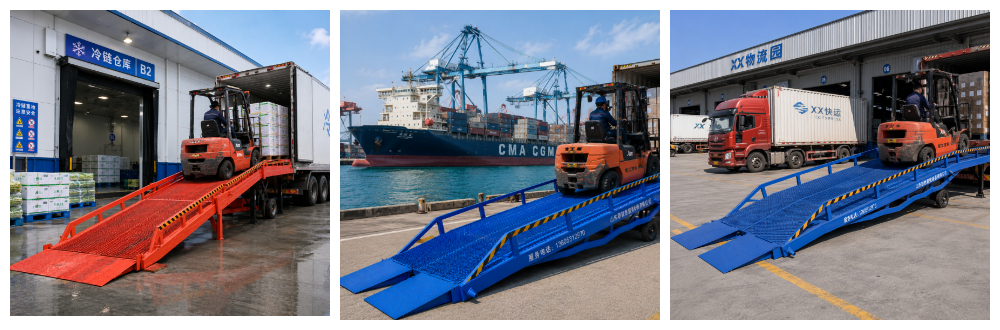

Product Application

1.Warehousing and logistics: Goods entry and exit from warehouses and transfer warehouses, as well as temporary turnover loading and unloading.

2. container yard: container loading operations such as container loading and unloading, stacking, and transshipment at the yard.

3. Production plant: Raw material warehousing within the factory area, finished product outbound, and heavy-duty material forklift transfer.

4. Cross-border freight transportation: Foreign trade logistics, cold chain transportation, temporary loading and unloading in different locations, and on-board operations.

5. Infrastructure construction sites: Outdoor construction sites, mines, municipal sites, loading and unloading of building materials and equipment.

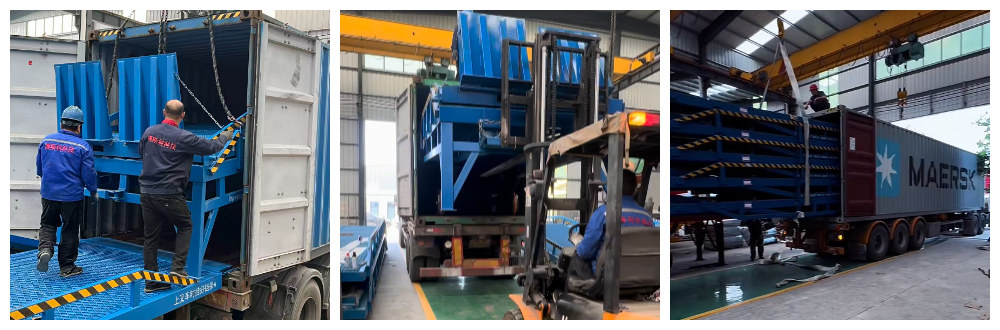

Packaging and Transportation

1.Professional export packaging: Anti-rust treatment for the entire machine, independent protection for key components, and export wooden box packaging.

2. Full set of qualifications with the goods: equipped with Chinese and English instruction manuals, quality inspection reports, and CE certificates, facilitating customs clearance and acceptance.

3. Anti-vibration reinforcement treatment: The box is buffered and fixed to prevent damage to the equipment caused by the jolts of sea and land transportation.

4. Multi-logistics adaptability: The folding size is regular, suitable for sea, air and land transportation, including LCL and full truckload transportation.

5. Full-process logistics follow-up: Dedicated personnel track the progress of logistics, synchronize data, and assist overseas customers in customs clearance and picking up goods.

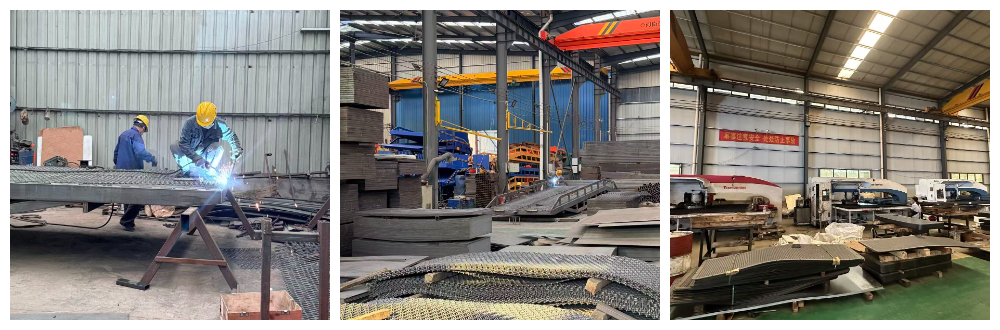

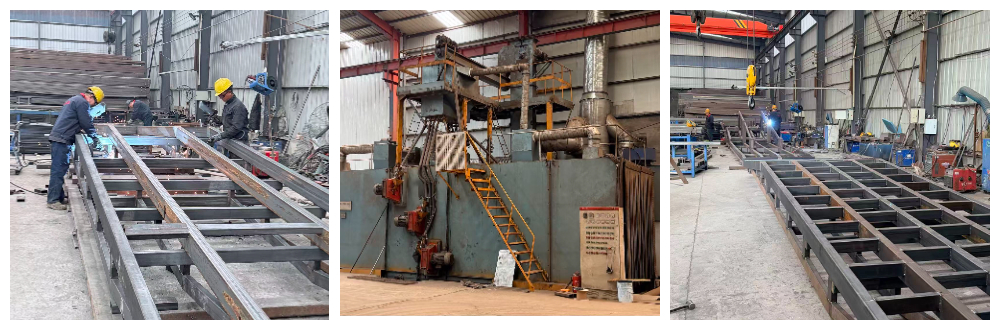

Company Strength

Foreign trade strength: We have our own factory, support OEM/ODM customization, hold CE and ISO certifications, and our products are exported to many countries around the world. The delivery is stable and highly compliant.

After-sales guarantee: 7× 24-hour multilingual service, long-term equipment warranty, global rapid delivery of core components, and remote installation, commissioning and operation and maintenance guidance provided.

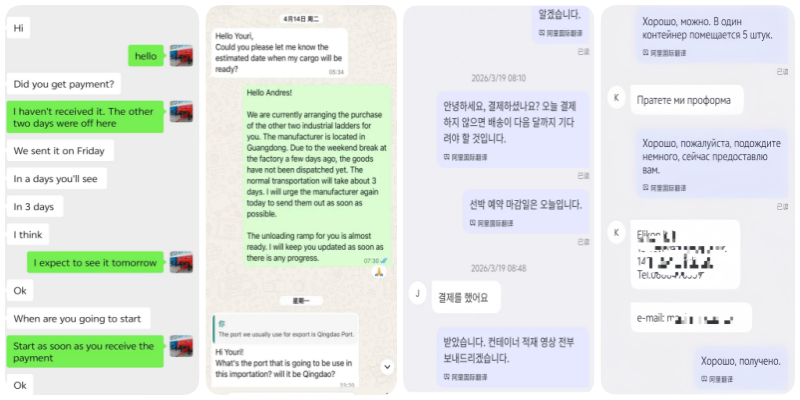

Customer Case

Our two-fold mobile yard ramp is widely recognized in overseas markets. Logistics enterprises in Southeast Asia are purchasing Forklift Loading ramps in bulk for daily container loading operations in the yard. Folding and storage save more space. Customized thickened steel loading ramp for European and American factories, suitable for high-load outdoor working conditions; Customers in the Middle East and Africa have been long-term purchasing Customized loading and unloading ramps for temporary loading and unloading on construction sites and in freight transportation. The reputation is stable and the repurchase rate is high.

FAQ

Q1: What are the practical advantages of two-fold ramps over ordinary integral ramps?

The two-fold structure combines strength and flexibility, with a smaller storage volume and more convenient transfer. It is more suitable for container loading and forklift operations where the location is not fixed and frequent relocation is required. It has greater overall rigidity, is less prone to distortion and deformation, and is more suitable for long-term outdoor high-frequency operations.

Q2: Can the customization cycle and the subsequent supply of accessories ensure the progress of overseas projects?

The full series of Customized loading and unloading ramps support fine-tuning parameters as needed, with a short regular customization cycle and flexible production scheduling; Core hydraulic components, rollers and other accessories are always in stock and can be quickly replenished across borders. Coupled with remote technical support, it minimizes equipment downtime to the greatest extent and ensures the continuous operation of overseas projects.
