Hydraulic Platform Lift

Heavy load bearing, strong lifting power

Smooth steady lift, no shaking

Full safety protection for operators

Simple push-button easy operation

Robust structure, low maintenance cost

Contact Now E-Mail Telephone WhatsApp

Product Details

Product Introduction

This hydraulic platform lift is a reliable vertical lifting equipment widely used in warehouses, factories and logistics yards for cargo loading and height operation. Adopting professional hydraulic drive system, it delivers stable, efficient and safe lifting performance to meet daily heavy-duty handling demands.

Stable hydraulic lifting with low noise
High load capacity for heavy goods
Complete safety lock & guardrail design
Compact layout, easy to move and store

Product Parameters

Product Name	Scissor Lift	Model No.	LSYZ-14M
Maximum working height	16m	Maximum platform height	13.8m
Overall length	2855mm	Work platform size	2635*1280mm
Lifting motor/drive motor	24v/4.5kw	Machine travel speed	3.5km/h
Total weight	3400kg	Extension Length of Platform	0.9m
Rising/falling speed	80/90 sec	Color	Customizable
Max Climb Capability	25%	tire	Φ381×127mm
Place of Origin	Shandong, China	Certification	CE

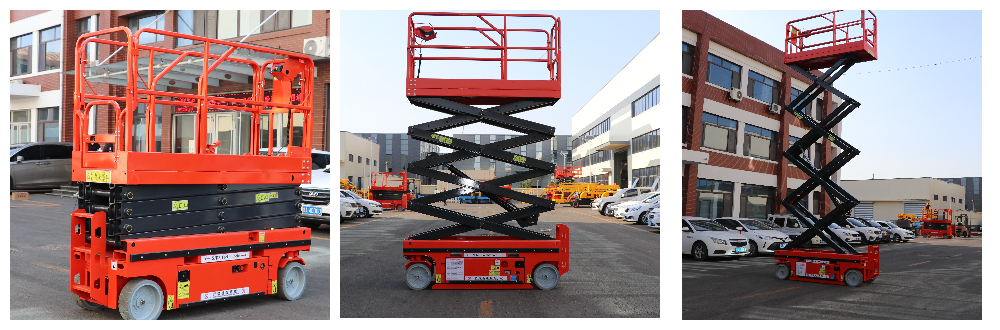

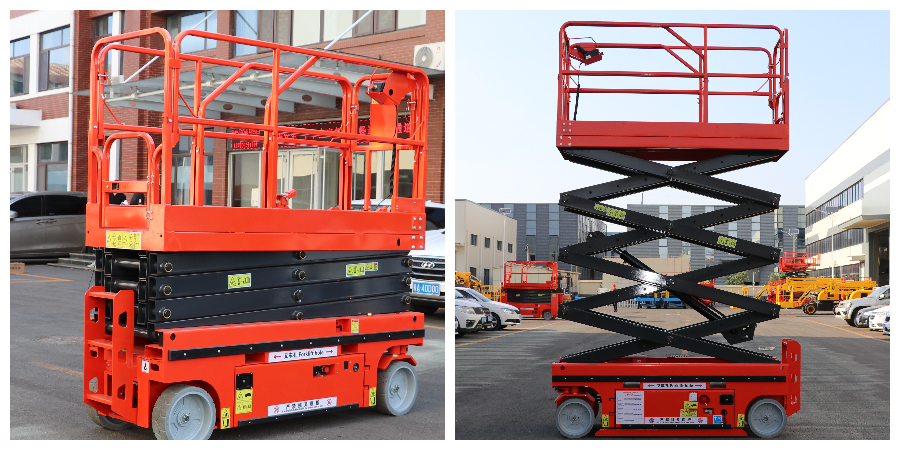

Model LSYZ-14M self-propelled scissor lift reaches a max working height of 16m with 13.8m platform height. It adopts 24V 4.5kW lifting and driving motor, featuring 3.5km/h moving speed and 25% climbing capacity. The main platform measures 2635*1280mm with a 0.9m extendable deck, whole machine length 2855mm and total weight 3400kg. It takes 80 seconds to fully rise and 90 seconds to lower, equipped with Φ381×127mm solid tires. Manufactured in Shandong, China with CE certification, its body color can be customized for different construction and maintenance work scenarios.

Product Classification

This self-propelled hydraulic scissor lift integrates high-altitude performance and flexible mobility, perfectly suited for factory maintenance, building construction and venue installation. Its optimized hydraulic drive and solid frame deliver stable, efficient aerial operation.

1.16m maximum working height plus 0.9m extendable platform, expanding working coverage greatly
2.24V 4.5kW dual motor system supports 3.5km/h travel speed and 25% climbing ability
3.Steady 80s lifting / 90s descending speed, matched with heavy-duty Φ381×127mm tires
4.CE certified equipment with customizable color, solid 3400kg full machine weight for stable operation

Working Principle

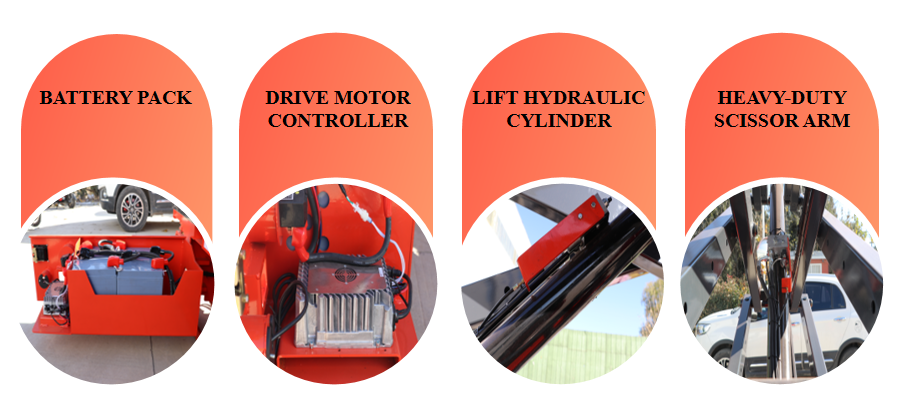

This self-propelled scissor lift relies on hydraulic transmission and electric control to realize walking and lifting operations, with its working process divided into 5 core parts:

Power supply output: The 24V battery supplies power to the 4.5kW lifting and driving motors to provide energy for the whole machine.
1.Walking driving principle: The drive motor transmits power to the solid tires, enabling 3.5km/h traveling speed and supporting 25% slope climbing.
2.Hydraulic lifting drive: The lifting motor drives the hydraulic pump to output pressure oil, pushing the scissor arms to unfold and lift the platform upward.
3.Descending control logic: Open the hydraulic relief valve to release oil pressure, and the platform slowly drops at a constant speed under self-weight.
4.Auxiliary balance control: The extended platform and heavy body weight cooperate to keep the machine balanced during all lifting and moving processes.

Product Application

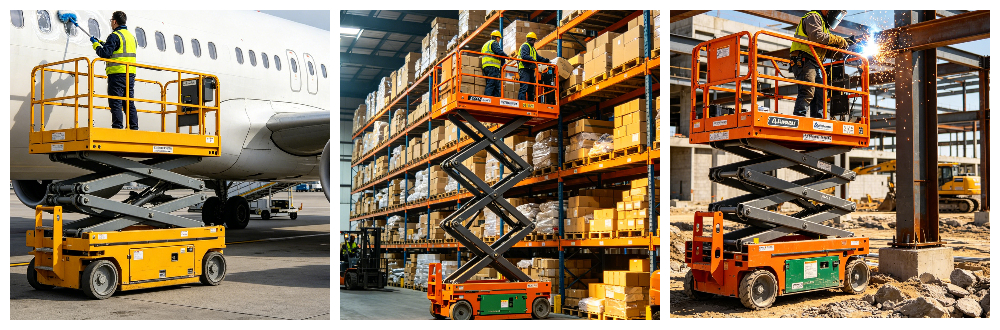

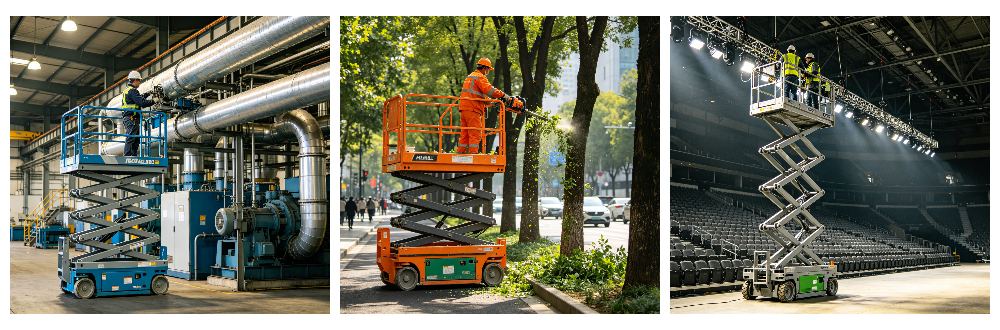

This 16m hydraulic scissor lift with extendable platform adapts to various high-altitude operation environments, main applicable scenes as below:

1.Factory equipment maintenance: Overhead pipeline, lamp and production line overhaul inside workshops.

2.Building construction & decoration: Wall painting, pipeline installation and ceiling construction for new buildings.

3.Shopping mall & venue engineering: Exhibition layout, light installation and daily venue maintenance.

4.Airport, station & logistics warehouse: High cargo sorting, overhead facility inspection and cleaning.

5.Municipal engineering work: Street lamp repair, road greening trimming and public facility maintenance.

Hydraulic Platform Lift

packaging and transportation

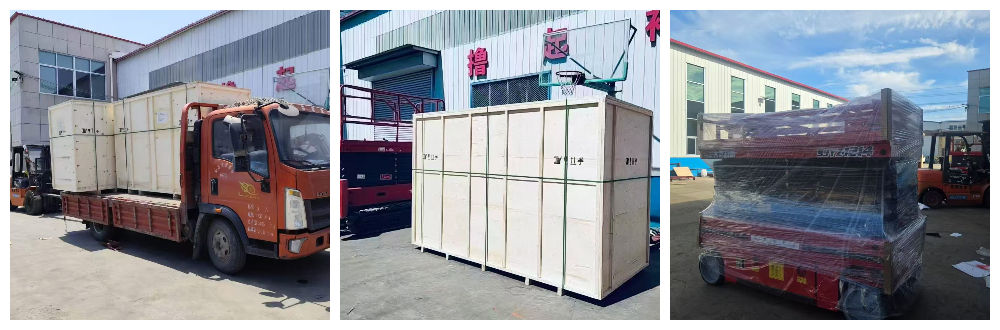

The LSYZ-14M scissor lift is fully inspected before shipment. The whole machine can be directly loaded into standard containers without disassembly. Key hydraulic and electrical components are wrapped with waterproof protective film, tires and exposed metal parts coated with anti-rust oil. With compact overall dimension, it saves shipping space and ensures safe long-distance sea or land transportation.

Company Strengths

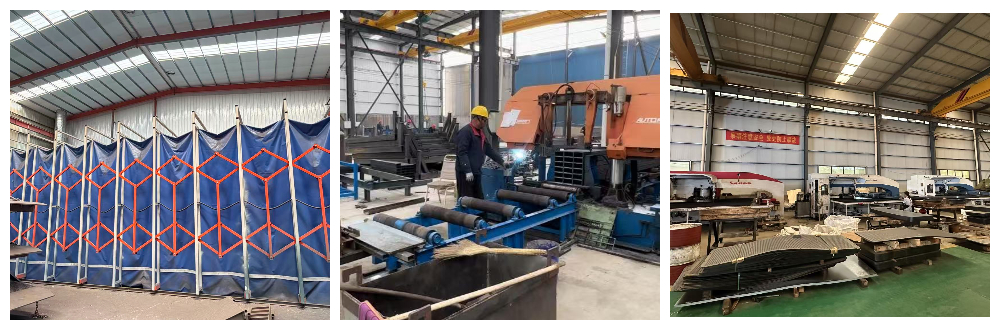

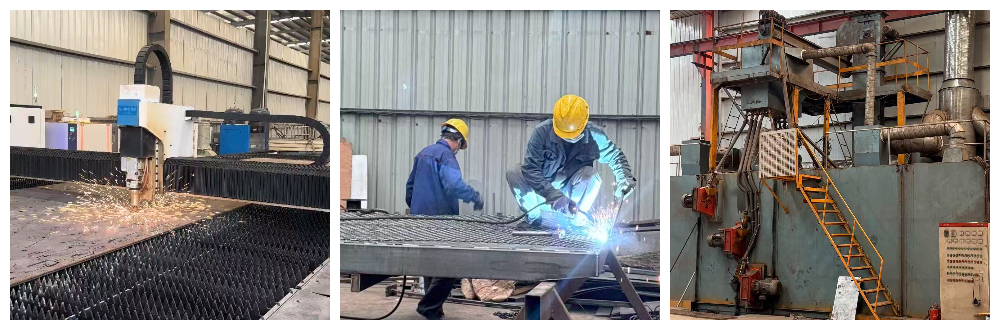

We are a professional manufacturer of self-propelled hydraulic scissor lifts based in Shandong, China, with complete independent production and R&D capacity covering structural welding, hydraulic assembly, electrical debugging and finished machine testing. Our factory is equipped with full sets of cutting, bending and machining equipment, enabling customized production of aerial work platforms like the LSYZ-14M model, from frame processing to finished product assembly. Every unit undergoes strict load, lifting and climbing performance tests before delivery, and all products pass CE certification to meet international safety standards. Supported by mature mass production capacity, stable component supply chain and standardized packaging logistics system, we can efficiently fulfill bulk orders for global clients, offering reliable high-altitude lifting equipment and one-stop customized solutions for construction, factory maintenance and municipal engineering sectors.

Customer Case

A large domestic municipal engineering enterprise engaged in urban public facilities maintenance previously faced prominent pain points during street lamp overhaul, overhead pipeline inspection and greening trimming projects: their old small aerial lifts only reached a maximum working height of 10 meters, unable to meet the demands of high-rise road lamp maintenance; the narrow fixed platform limited operating space for two construction workers at the same time, and weak climbing performance made it hard to move normally on sloped roadside ground, severely slowing down daily construction efficiency. After learning about our LSYZ-14M self-propelled scissor lift, the client purchased a batch of our 16m working height aerial work platforms as a replacement solution. This model is equipped with a 0.9m stretchable extended platform to expand the operation area, supports 25% climbing capacity to adapt to various road slopes, and stable hydraulic lifting ensures safe long-hour high-altitude work. After putting into use, the team’s daily maintenance workload increased by nearly 40%, eliminating frequent equipment transfer delays caused by insufficient lifting height. We have maintained stable long-term cooperative relations with this customer for 3 years, and the client places repeat orders every year to expand their engineering equipment fleet.
